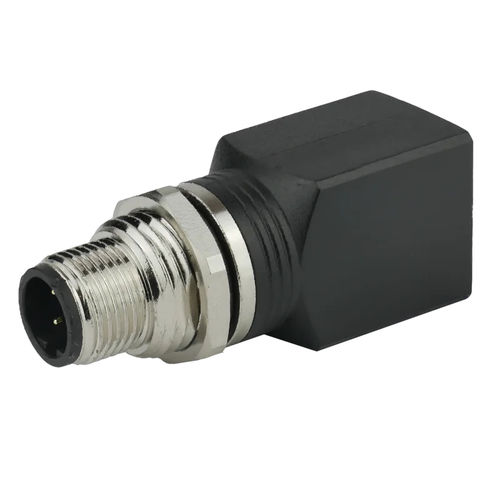

Communication adapter 70515

malefemaleM12-RJ45

Area of application: Industry • Coding D-Code • Number of poles 4 poles • Connector type M12 • Connector type Female • Connector Inlet RJ-45 socket • IP protection IP67 • Housing nickel-plated die-cast zinc • Temperature range -40°C - +80°C • Nominal voltage 60V AC/DC • Nominal current 0,5A • Contact resistance 5m Ohm • Insulation resistance 100M Ohm M12 D-coded 4-pin circular connector female to RJ45 male, is ideal for frontpanel mounting. The shielded and rugged chassis connector easily connects to a PROFINET RJ-45 patch cable in the housing. The circular connector can be used for data transmissions up to 100Mbit/Cat.5e. When mated and screwed, the M12 connector can achieve IP67 protection class. The circular connector offers ideal vibration and shock resistance and ensures a stable power and data connection in industrial Environments.
