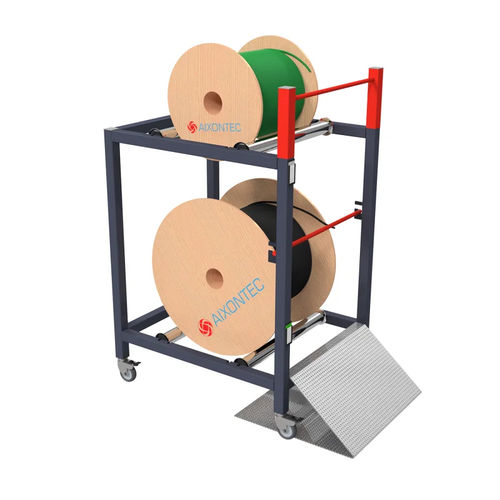

Cable drum trolley DRUMBoy Twins

storagewith swivel castersindustrial

• length: 780 mm • width: 636 mm • height: 900 mm (without Castors) technical data • square tube: 40 x 40 in gray RAL 7016 powder coated • swivel castors with brake and rubber wheel M10 threaded connection (can be replaced at any time). • suitable for industrial and production halls • carrying rollers: 2 x 556 mm length with lateral guide protection (can be replaced at any time) • weight: approx. 20 kilograms scope of delivery: • frame: DRUMBoy trolley twins • 2 x carrying Castor • 4 x swivel castors • 1 x protective bar (Ø 15 mm) The solid construction consists of square tubes welded together and is suitable for mobile unwinding and rewinding as well as efficient storage for a drum with a diameter of up to 60 cm and a weight of up to 80 kilograms. The DRUMBoy-Twins from AIXONTEC has been developed to use two different sizes of cable drums at the same time in a mobile way. The solid construction consists of welded 40 X 40 mm steel tube profiles for unwinding and winding of 2 cable drums.The advantage is the simultantly using, space-saving and storaging of up to two cable drums. The DRUMBoy-Twins is equipped with a total of two floors. The cable drums on each floor are guided on two special conveyor rollers with lateral guide protection for better and safer winding and unwinding of cable drums. The standard design of AIXONTEC DRUMBoy Twins offers the use of one drum of 60 cm and another of 40 cm on two floors. Our specially designed ramp for DRUMBoy- Twins (Art-No: 80307), is developed to offer an easy and safe set up for heavy cable drums on the lower floor.
