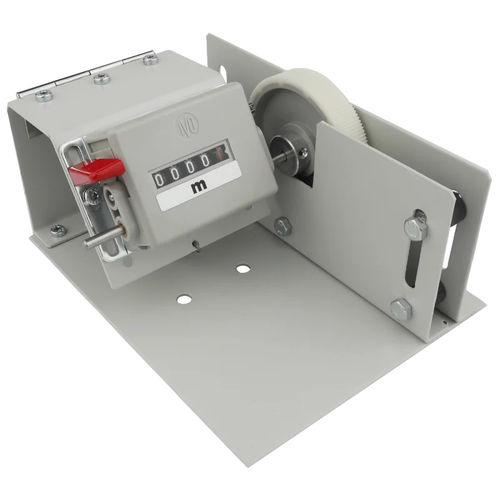

Stroke counter 80613.GR

digitalelectromechanicalindustrial

Display: • Stroke counter • Adding • Display 5 digits • Zero setting by lever • display white digits on black background • Digit height 4,5 mm • Drive shaft on both sides, ø4 mm • Stroke movement >38° to <60°. • Stroke frequency ≤500 strokes/min. • measuring range 9999.9 • ambient temperature 0...+60 °C • Housing color gray • Dimensions W x H x L 69 x 48 x 28 mm • Dimensions base plate 80 x 48 mm • Mounting type base plate with 6 slotted holes • Mass approx. 130 g • Materials housing: Hostaform POM, gray • base plate: galvanized steel Measuring wheel: • outer diameter 63.66 ±0.1 mm • operating temperature -10...+70 °C • material / lining Hytrel TPE-E • material / wheel plastic • Profile surface Corrugated • Suitable measuring material surface:◦Wood ○ Plastic ○ Painted surfaces ○ Metal ○ Paper ○ Cardboard ○ Textiles
