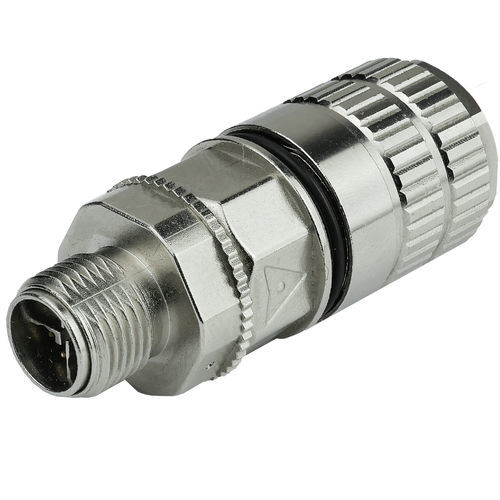

Data connector 70109Ethernetroundscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Ethernet
- Shape
- round
- Connection type
- screw-in
- Size
- M12
- Electrical characteristics
- DC/AC
- Product applications
- plug, for cables
- Domain
- outdoor, industrial, automation, network, for automation applications, for robotic applications, for cables
- Protection class
- IP67
- Other characteristics
- waterproof, field-attachable, insulation-displacement, category 6a, PoE
- Data rate
10,000 Mb/s
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
Scope of application: industrial and outdoor
metric, field-installable, IDC M12 circular male cable connector, X-coded
- X-coded
- transmission properties: Cat 6A / 10GbE
- contacts: 8-pin
- connection: IDC (insulation displacement connection)
- cable Connection: AWG22-26
- cable outer diameter:6.0 - 8.5mm
- IP protection: IP67
- plug cycles: min 100
- PoE (power over Ethernet): PoE++ Type4, according to IEEE 802.3bt / IEC 60512-99-002:2019
- rated voltage: 250V AC/DC
- rated current: 4A
- design: 180° straight
- housing: zinc, die-cast housing, nickel-plated
- temperature range: -40°C to +85°C
- M12 circular connector
- shielded
1 packaging unit = 2 pieces
