Data connector 70514RJ45circularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45
- Shape
- circular
- Connection type
- female
- Size
- M12 D-coded
- Electrical characteristics
- AC/DC, 4-pole, shielded
- Material
- nickel-plated, die-cast zinc
- Product applications
- front panel
- Domain
- industrial, for data transmission
- Protection class
- IP67
- Other characteristics
- rugged, ProfiNet
- Primary current
0.5 A
- Voltage
60 V
- Data rate
100 Mb/s
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description

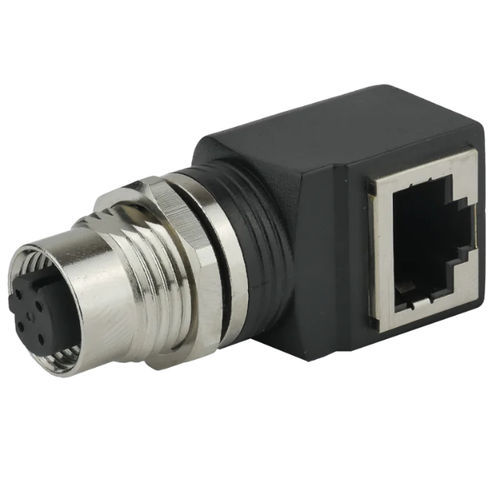

M12 D-coded 4-pin circular connector female to RJ45 female, is ideal for frontpanel mounting. The shielded and rugged chassis connector easily connects to a PROFINET RJ-45 patch cable in the housing.
The circular connector can be used for data transmissions up to 100Mbit/Cat.5e. When mated and screwed, the M12 connector can achieve IP67 protection class. The circular connector offers ideal vibration and shock resistance and ensures a stable power and data connection in industrial Environments.
