Data connector 70512RJ45backplanecircular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45, backplane
- Shape
- circular
- Connection type
- female, male
- Size
- M12 X-coded
- Electrical characteristics
- AC/DC, 8-pole, shielded
- Material
- nickel-plated, die-cast zinc
- Product applications
- front panel
- Domain
- industrial, for data transmission
- Protection class
- IP67
- Other characteristics
- rugged
- Primary current
0.5 A
- Voltage
60 V
- Data rate
10 Gb/s
- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description

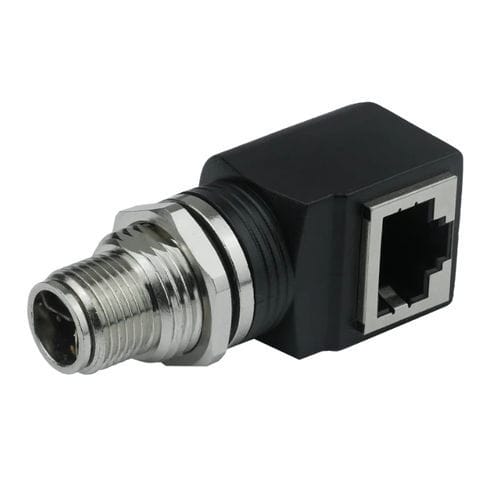

M12 X-coded 8-pin circular connector male to RJ45 female 90°, is ideal for backplane mounting. The shielded and rugged chassis connector easily connects to a standard RJ-45 patch cable in the housing.
The circular connector can be used for data transmissions up to 10GbE/Cat.6A. When mated and screwed, the M12 connector can achieve IP67 protection class. The circular connector offers ideal vibration and shock resistance and ensures a stable power and data connection in industrial Environments.
