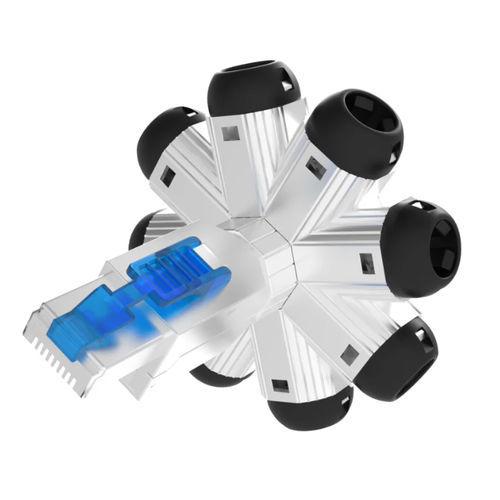

Data connector 21305
audio/videoRJ45shielded

data connector
data connector
data connector
data connector
data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data, audio/video
Format
RJ45
Electrical characteristics
shielded
Material
nickel-plated, die-cast zinc, metallic
Product applications
plug, building, for cameras
Domain
industrial, for indoor use
Other characteristics
IEC, compact, strain relief, ISO, category 6a, PoE
Data rate

10 Gb/s

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -40 °C
(-40 °F)

Description

Field-mountable RJ45 plug with fully shielded die-cast-zinc housing. Suitable for all applications (voice, video, and data) class EA/ 500 Mhz/ 10 GbE. For industrial applications, building cabling and applications in the field of building management systems. The compact design with detachable wire separator ensures quick, easy on-site assembly, even for cables with larger conductor cross-sections. The metallic housing is high quality and solid processed, a 360° shielding and strain relief is through the cable holder on Enclosure entrance ensured. The high-quality plug supports POE applications and can be used to power Access Points and IP cameras can also be used in industrial environments.
