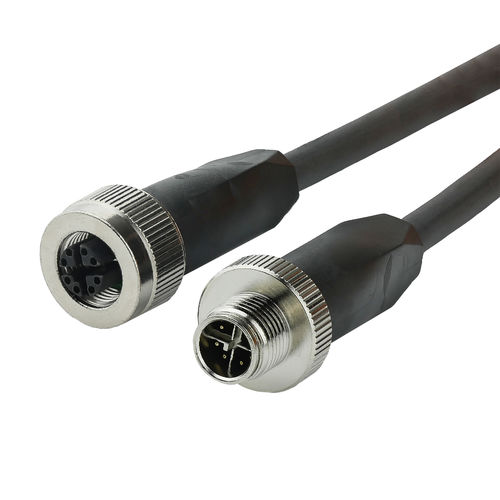

Rugged patch cable M12/20

CAT 6a

M12/20 Industrial Ethernet cable X-coded male to female overmolded IP67 Application Areas: Industrial/Outdoor Areas Electrical Values Cat.6A Klasse EA 500 MHz / 10 GbE Plug Side A M12/20 8-Pin X-coded male, molded Plug Side B M12/20 8-Pin X-coded female, molded Norms ISO/IEC 11801 EN 50173 IEC 61156-6 EN 50288-4-2 IP-protection IP67 Cable Construction 4x2xAWG26/7 S/FTP 1. Conductors stranded bare copper conductor AWG26/7 2. Isolation FOAM-SKIN-PE Ø 1.05mm 3. Pair Shielding laminated aluminium/polyester foil 4. Shielding tinned copper braiding 5. Outer Sheath MUD, LSOH, black Cable Diameter Ø 6,4 mm (± 0,2mm) Operating Temperture -40°C - +70°C Bending Radius 8x Cable Diameter (during Installation) 4x Cable Diameter (at rest) Flame retardant according to IEC 60332-1 IEC 60092-360 Chemical resistant according to Mineral oils IRM902 according to IEC60811-2-1 UV-resistant according to ISO 4892-2 UV-A ISO 4892-2 UV-B AIXONTEC M12/20 8-pin X-coded Industrial Ethernet cables are suitable for fast data transmission up to 10GbE in industrial environments. The high flexible data cable with MUD outer jacket is UV-resistant, abrasion-resistant and chemical-resistant. When plugged in and screwed together, the M12/20 can achieve protection class IP67. Thanks to the specially developed 20mm wide screw locking mechanism, the cable can be easily screwed in place, even when wearing industrial gloves. This helps production staff to work more efficiently.
