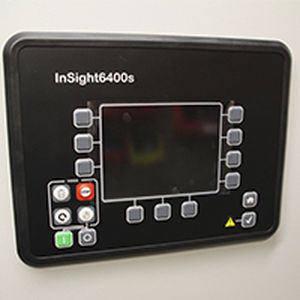

Generator set control panel Insight 6000S

digital

The InSight 6000s range is a new and improved version of the market leading InSight 6000 control panel. It combines all of the powerful original features of the previous generation InSight6000 with added functionality, new front fascia layout and hardware enhancements. The InSight 6000s range can offer a solution for various synchronising applications from AMF, peak shaving and import/export control. Full Synchronising controller. Up to 32 generating sets in island mode/or parallel with utility. Breaker Control – Phase matching/Slip frequency synchronising with open/close control and monitoring. Operation mode – Auto, Manual, Stop and Test Mode (new). Can be accessed via faceplate or digital input. Load Transfer – Open/close transition, Interchange, soft loading/unloading and utility parallel. Three Phase true RMS power sensing with class 1 accuracy. Complete integrated engine, generator and utility protection. Enhanced connectivity enables fast and secure interfacing – 5 communication ports: Ethernet, 2 x CAN Bus, RS485 and USB. USB and Ethernet enabled programming via Toolkit software. Load Share and device to device communication over Ethernet (redundancy now available) or CAN. Remote control via interface (Modbus TCP, RTU) and via digital/analog inputs for adjusting speed (frequency), voltage and power set-points with others included. Drop-in replacement for original InSight 6000 controller. Minimal wiring changes, ensures system longevity. Customizable logic, HMI and alarms. Full PLC capabilities using the LogicManager and Analog Manager. Virtually eliminates the need for external PLC’s. Scania S6, MTU ADEC, SISU EEM3 and Perkins ECU support.
