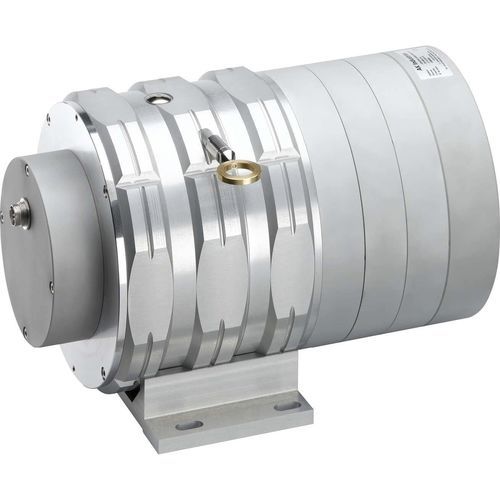

Draw-wire displacement sensor CDS1820 series
potentiometeranalog

draw-wire displacement sensor
draw-wire displacement sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
potentiometer
Output signal
analog
Measuring range

Max.: 20,000 mm
(787.4 in)

Min.: 0 mm
(0 in)

Description

Linear potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to the movement of the mobile. The sensor provides a direct ohmic value on a range going up to 20000 mm. • Range up to 20000 mm • Output signal : • - 1kΩ ; 5kΩ ; 10kΩ • Standard linearity : • - +/- 0,15% (+/-0,10% optional) • Resolution : • - Quasi infinite (depends on the measuring device)

Catalogs

No catalogs are available for this product.

See all of AK Industries‘s catalogs
