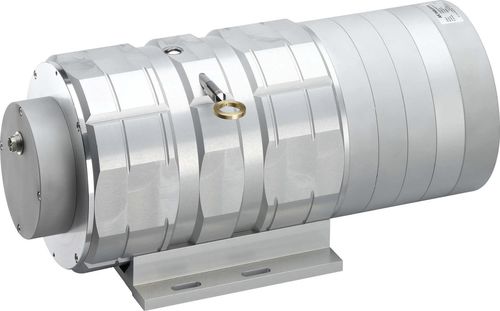

Draw-wire displacement sensor CDS1850

potentiometeranalog

Linear potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to the movement of the mobile. The sensor provides a direct ohmic value on a range going up to 50000 mm. • Range up to 50000 mm • Output signal : • - 1kΩ ; 5kΩ ; 10kΩ • Standard linearity : • - +/- 0,15% (+/-0,10% optional) • Resolution : • - Quasi infinite (depends on the measuring device)
