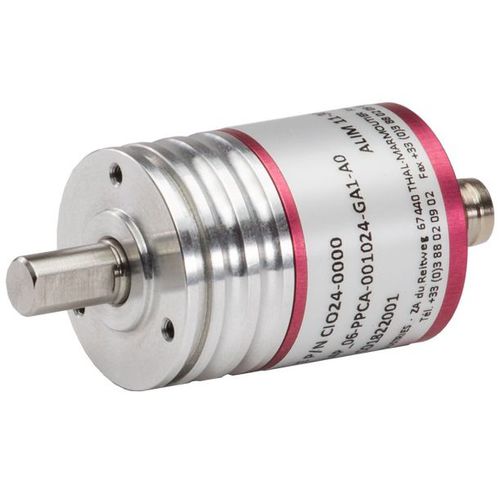

Incremental rotary encoder CIO24Popticalsolid-shaftaluminum
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- solid-shaft
- Material
- aluminum, stainless steel
- Protection level
- robust, IP65, IP67
- Applications
- industrial, for motors, for harsh environments, marine, for the food and beverage industry, for elevators, exterior, for robotics
- Other characteristics
- compact, high-resolution, miniature, high-accuracy
- Housing diameter
24 mm
(0.94 in)
Description
Technical characteristics
Power supply and output 4.75 to 32 Vdc –Push-Pull output (RS422 compatible)
Resolution 64; 128; 256; 512; 1024 PPR
Max. admissible rotational speed 12000 turns/min
Max. continuous rotational speed 12000 turns/min
Axial load 20N
Radial load 60N
Material Body and cover: aluminum(RohS)Shaft: stainless steel
Protection IP65 (IP67 optional)
Connections M8 –4 pins PVC cable 8 wires
Weight approx. 50g
Operating temperature -20°C ... +100°C
Storage temperature -40°C ... +100°C
Electronic characteristicsPush-Pull versionPower supply: 4.75 –32VDCNo-load consumption : 40mAOvervoltage, short circuits, reverse polarities and overcurrent protection
