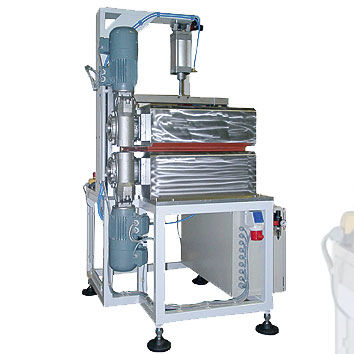

Pipe extrusion line caterpillar haul-off

for profile extrusion lines

Made-to-measure design and dimensioning of robust and universally applicable haul-off belts according to the respective individual performance requirements. Design and implementation of the haul-off belts to customer-specific quality and requirement specifications. These can be supplied as haul-off belt or haul-off caterpillar solution. The respective approach to the solution depends on the product to be conveyed and the plant design. Haul-off belt versions for the transport of plastic and rubber extrudates. Design for other cases of transport and application such as flat single-layer and multi-layer paper piles, flat compound material layers, ferrous and non-ferrous flat sheet metal layers or round profile cross-sections are available on request. The range of AKMA Technology GmbH haul-off belts includes versions with belt width from 10mm to 500mm, excess widths upon request contact surfaces from 200mm to 2000mm length, excess lengths upon request Haul-off forces up to 20 kN Haul-off width as cleated haul-off from 500mm to 1000mm, excess lengths upon request Opening and closing pneumatically or manually with hand wheel Opening and closing to centre axis of haul-off line, optional opening and closing of the upper belt to the stationary lower belt of the haul-off belt. Haul-off pressure adjustable The standard solution of the haul-off belts is fitted with an up-to-date PLC control where the process parameters of the haul-off process are shown on a touch screen and are adjustable for an optimum haul-off process. The haul-off speed is adjustable. Compact design allows a straight alignment within the entire extrusion line.
