Pinch valve OV

with handwheelpneumatically-operatedfor control

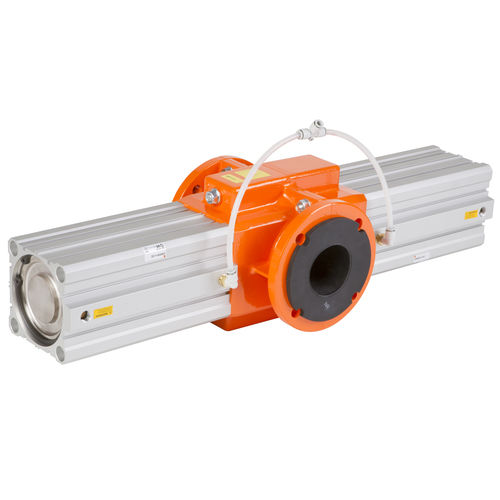

Control Pinch Valve, OV series, mechanically operated, double acting, type PA2 Control Pinch Valve of AKO series OV, type P2, with double acting pneumatic cylinders, available in DN65-250. Pinch valve, aluminium body, powder-coated RAL2008, corrosion and abrasion resistant design, product only contacts elastomer/rubber sleeve! The structure encompasses the sleeve, body and actuator/s. The pinch valve sleeve is directly connected to the closing mechanism as standard and is thus actuated automatically. Only the sleeve is in the product flow (contact with the operating medium) of the manual and control pinch valves of the OV series. Materials of manual and conrol Pinch Valves OV series A selection of different elastomer grades for the sleeve (e.g. rubber, neoprene, nitrile and EPDM) ensures that the valves have a very wide and practically unrestricted field of application. Pinch Valve actuators A manual handwheel model of type M (DN15-DN250) or alternatively a single-acting, spring return pneumatic cylinder model of type PA/PA2 (DIN15-200) are available as actuators.The spring return pneumatic cylinder model of type PA is designed with one pneumatic cylinder (DN15-DN50), the type PA1 model with two pneumatic cylinders (DON65-DN200). A double-acting pneumatic cylinder model of type P/P2 (DN15-DN250) is also available.The double-acting pneumatic cylinder model of type P (DN15-DN50) is provided with one pneumatic cylinder, the type P2 model with two pneumatic cylinders (DN65-DN250). Body + cylinder: Aluminium
