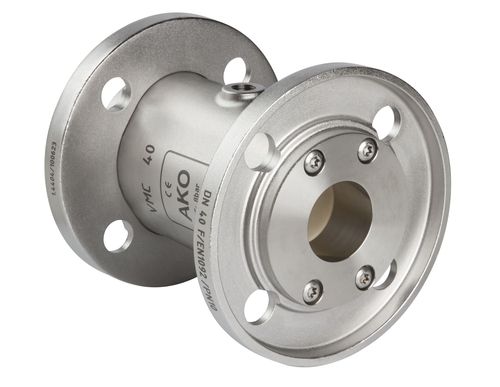

Pinch valve VMC

pneumatically-operatedfor controlflange

Lightning-fast response times (opening/closing)! Optimum sealing for solids! Permanently sealed! Easy hose/sleeve replacement! Robust for the toughest demands! Optimum price / performance! For energy savers → 40% less compressed air consumption! Air operated Pinch Valves with Flange Connection - VMC Series The air operated pinch valves of the VMC series are available in the nominal diameters of DN25 to DN150. They are designed with a flange connection complying with DIN EN 1092 (PN10/16) / ANSI B 16.5-150lbs (DN40-150) as standard. VMC series air operated pinch valves can also be provided in compliance with DIN 11853-2 and DIN 11864-2 Form A. Air Pinch Valve, VMC Series, Stainless steel design, ANSI B 16.5-150lbs Air operated pinch valve from the AKO VMC series. Pinch valve housing and flange (in accordance with ANSI B 16.5 150lbs) in stainless steel. Most robust and corrosion resistant design, 40% energy savings due to an elliptical control chamber! Materials of AKO air operated Pinch Valves VMC series A selection of 12 different elastomer grades for the sleeve (natural rubber, food quality rubber, high temperature rubber, CR, EPDM, EPDM food quality, viton, silicone, nitrile, nitrile food quality, butyl and CSM) ensures that the VMC series air operated pinch valves have a very wide and practically unrestricted field of application. The body is available as follows: Powder-coated aluminium body Electro-polished stainless steel body
