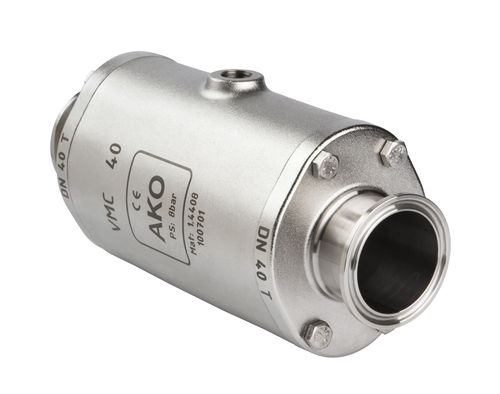

Pinch valve VMC

pneumatically-operatedfor controlstainless steel

Pinch valve, VMC series, housing and lid in stainless steel, tri-clamp in accordance with DIN 32676 row A or C Pinch valve housing and lid in stainless steel 1.4408. Very Fast installation / removal in pipes, food industry version, 40% energy savings due to an elliptical control chamber! Structure of Pinch Valve with tri-clamp The structure of the VMC series air operated pinch valves encompasses the sleeve a body and two collar caps. The pinch valve sleeve is positioned in the centre of the VMC series air operated pinch valve's body; both of its ends are pressed in by the collar caps, thus forming a compact unit. Face to face length of pinch valve with tri-clamp connection DN10: Acc. to DIN EN 558 row 27 DN15-50: Acc. to DIN EN 558 row 1 DN65-100: Acc. to DIN EN 558 row 7 Materials of AKO air operated Pinch Valves VMC series The standard material for the pinch valve body is: powder-coated aluminium electro-polished stainless steel POM white or POM black electrically conduvtive (DN10-15) Socket end cover (tri-clamp connections): electro-polished stainless steel 1.4404, other types of stainless steel on request
