Roller bearing KLY
radialsteelplastic

roller bearing
roller bearing
roller bearing
Add to favorites
Compare this product


Characteristics

Rolling element
roller
Configuration
radial
Material
steel, plastic
Applications
transmission
Other characteristics
sealed, custom, high-quality, large, wear-resistant
Inside diameter

6 mm
(0.24 in)

Outside diameter

Max.: 32 mm
(1.26 in)

Min.: 24 mm
(0.94 in)

Width

8 mm
(0.315 in)

Description

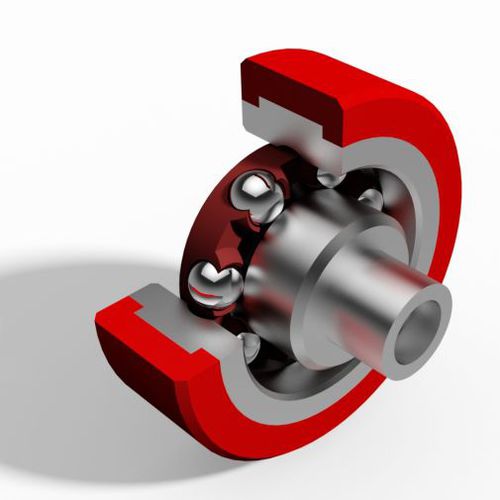

Product range In addition to the wide range of roller bearings in our product line you can also find a large number of specialty rollers. These are supplemented by the classic thrust bearing (KT-bearing) and the custom designed chain and clamping sprockets for our customers. Track roller with plastic coating (KLY) Features The KLY-Rollers are single row rollers with a plastic covered outer ring. They are suitable for applications with low radial loads and high requirements on quiet running operation. The components are made of high-quality rolling bearing steel (e.g. 1.3505). The plastic coating consists of a wear-resistant polyamide material. The inner ring of the KLY-roller can be combinated with an inner ring bolt for riveting or with hole. Sealing Standard design KLY-rollers are not sealed. Operating Temperature The standard design KLY-rollers can operate at temperatures of -10°C to +110°C.
