Gas-insulated substation SCK-1

mobilepower distributionfor medium-voltage transformers

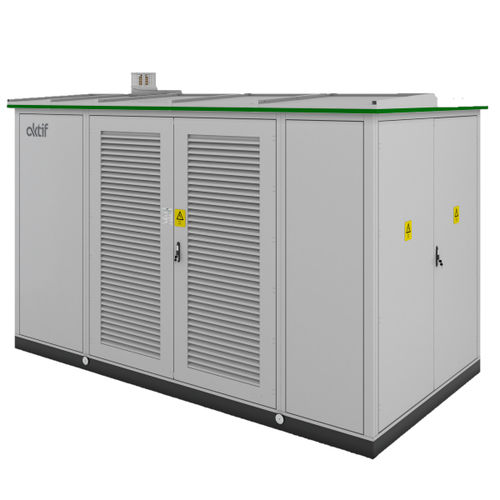

SCK-1 Compact Transformer Substations are transformer and distribution centers made of galvanized sheet steel in desired dimensions. They are suitable for use of all types of MV switchgears and LV panels. They are manufactured in the requirement number of sections and doors according to the project requirements. They are mounted on ready floors with cable channel, platform or skid. SCK-1 Compact Transformer Substations are manufactured from strong construction with galvanized sheets and profiles. Thermal insulation is provided with glass wool or rock wool insulation materials used in walls and roofs. The total wall and roof thickness is 43 mm as standard and it is possible to use different thicknesses according to the project requirements. Sheet Metal Kiosks are used in power transmission, distribution, renewable power plants, oil & gas, industry, compact transformer substations. It is also possible to use it as mobile with its designs on a trailer, skid or wagon. SCK-1 Sheet Kiosks are manufactured in accordance with the type tests taken from internationally accredited test laboratories and IEC 62271-202 standard. SCK-1 series sheet metal kiosks, transformers and distribution substations have TSE, ISO 9001, ISO 14001 and ISO 45001 quality certificates.
