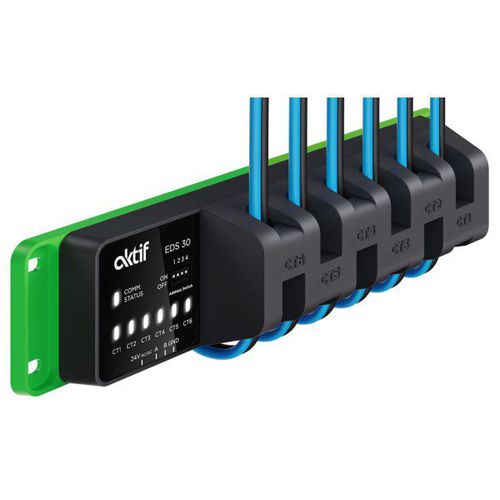

Fault location system EDS 30

EDS 30 Insulation Fault Location device is designed to detect the location of insulation fault in IT systems. The fault location device EDS 30 communicates with the Insulation Monitoring Device (IMD30) with the ModBus RTU protocol and determines which line the fault originates from in a very short time. It continuously scans its 6 current transformers and if a leakage is detected the alarm LED of the faulty channel lights up. Alarm details are displayed on the Local Alarm Panel and the Remote Alarm Indicator. Advantages • Elegant designed to detect the location of insulation fault in IT systems. • Number of channels: 6 • Remote insulation test and fault contact outputs Applications Areas • Operating rooms • Intensive care rooms Standards • IEC 61557-8 • IEC 60364-7-710
