Oxy-fuel cutting machine ADOP

plasmafor metalfor metal sheets

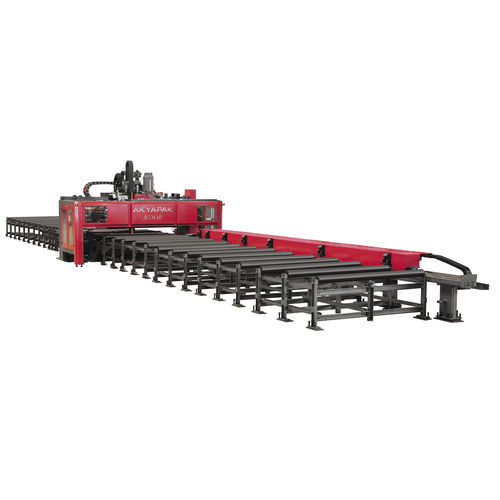

ADOP is designed with the ability to drill, cut and mark to increase efficiency, combining versatility and accuracy. The drill unit is fitted with heavy-duty double linear guides on the heavy steel bridge frame and the cutting unit is mounted on the other side of the bridge. The accurate horizontal axis movements for drilling and cutting units are guaranteed with servo driven ball screws. The 10-station automatic tool changer (atc) is provided as standard and layout marking can be executed by placing a tool in the atc without manual intervention. Oxy & plasma cutting are provided as standard features as well. A plasma torch is standard in order to get the best cutting results. Fumes and dusts generated during the process can be extracted and filtered through a highly effective fume extraction unit. Positioning of plates is performed accurately utilizing hydraulic gripping jaws which are fitted on double linear guides. Feeder trucks are driven by servo motors with a rock and pinion system. SPECIFICATIONS Spindlemotor and all axial engines: Servomotor Screw cutting capacity: max. M24 Inner cooling carbide drill usage: Yes Set inner cooling: Standard, pulverized pressed air and boron water (carbide yip drills) Spindle and Cutting Units Movement Bedding (horizontal / vertical): Preloaded lineer units Movement forwarding system: Preloaded ball screws / nut system Marking by scrapping: Yes Automatic tool changing unit: Yes ATC Capacity: 6 Tools Oxy and plasma powder filtration unit: Yes Rasping collection plate (wheeled): Yes Plate application system: Servoengine + Reductor / Pinion + Krameyer gearing system Plate blockage: Hydraulic remote controlled extrusion jaws
