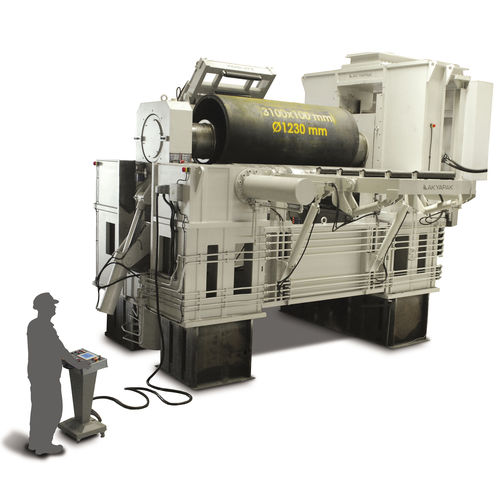

3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 2
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 3
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 4
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 5
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 6
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 7
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 8
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 9
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 10
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 11
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 12
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 13
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 14
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 15
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 16
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 17
3-roll plate bending machine - AHV  - AKYAPAK MAKINA SAN TIC - hydraulic - image - 18
Add to favorites
Compare this product


Characteristics

Number of rollers
3-roll
Operation
hydraulic
Sheet thickness

Max.: 260 mm
(10.2 in)

Min.: 85 mm
(3.3 in)

Sheet width

Max.: 7,000 mm
(276 in)

Min.: 3,600 mm
(142 in)

Description

AHV combines power with production flexibility thanks to its variable geometry design. The three rolls in AHV models move independently of each other. The required geometric positions for a wide range of workpieces are ensured thanks to vertical movement of the top roll and independent horizontal motion of the side rolls. Precise, productive and reliable The more accurate rolling can be performed for remaining less flat ends by positioning rolls asymmetrical, while the rolls can be positioned symmetrical for rolling at maximum thickness. With those fundamental features, AHV provides the power of versatility in production. STANDARD FEATURES Induction hardened rolls Fully welded steel (St-52) frame Linear guides for roll movements All rolls are mounted in spherical roller bearings Cone rolling device Electronic Parallelism Special braking system Dual bending speeds Digital display Separate moveable control panel Hydraulically opened/closed drop end controlled from control panel Activation of cone rolling function and position adjustment via buttons on the control panel All rolls are driven by hydraulic motor and planetary reducer independently OPTIONAL FEATURES Variable speed of rotation Material feeding table Oil air cooler Central support Side supports Interchangeable top roll
