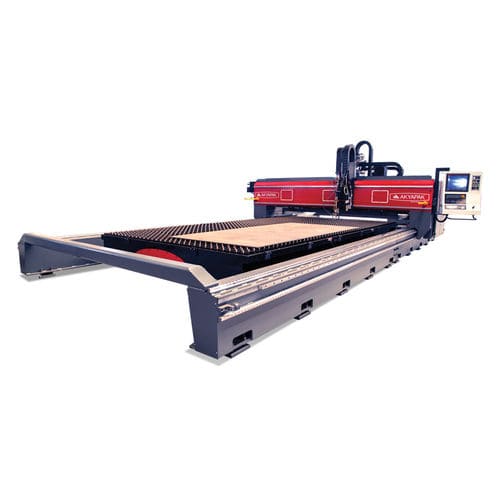

Oxy-fuel cutting machine APLG 3060

plasmafor steelsheet metal

Drilling Oxy-Fuel/Plasma Cutting Machines Akyapak’s Touch on Steel Construction Industry with GANTRY… Akyapak is on the market with APLG-Akyapak GANTRY Hole Drilling and Oxygen/Plasma Cutting Machine, its new model in CNC hole drilling, marking, cutting lines in Akyapak’s product range, which can only be manufactured only a few manufacturers in the World… Akyapak raises the bar in terms of productivity in steel construction manufacturing industry with its GANTRY model. The model is able to perform cutting and light milling on plate by moving the bridge in a minimum field when the material is fixed. The bridge moves on GANTRY while the machine table is fixed, and the model has a hole drilling center with 22 kilowatt power, and plasma and oxygen cutting unit. The smallest version has a 2-meter width and its length starts from 6 meters, while the largest version has a 4-meter width and its length ranges up to 36 meters. With this model, Akyapak is environment-friendly, as well. Gases exhausted as a result of plasma and oxygen cutting are collected from the fixed table and filtered, and emitted into the environment as clean gases. SPECIFICATIONS Plate size (max. mm): 3000x6000 Plate thicknes with plasma (max. mm): 50 Plasma torches (No.): 1 Plate thicknes with Oxy (max. mm): 100 Drilling head (No.): 1 Drilling tools per head (No.): 8 Spindle power (kW): 22 Spindle max (RPM): 3000 Machine weight (Kg): 22730
