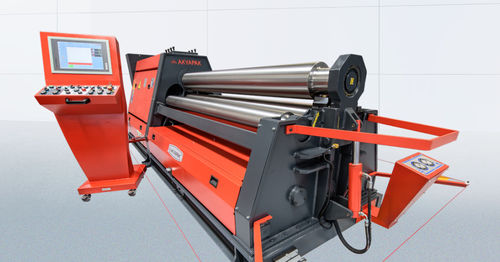

4-roller plate roll machine AHS 20/08

hydraulicCNC

Prescide, Productive and Reliable As well as being reliable, AHS increases productivity with its high speed rolling ability and it overcomes the most challenging bends thanks to its ease of use. Since the plate is pinched during rolling, skidding and slipping of materials are prevented. Thus, more. In AHS 4-Roll Plate Rolling Machines, one of the side rolls can be used as a squaring roll, thus the plate can be easily and precisely aligned along the roll across the input direction. Less Flat Ends At a Single Pass In AHS 4-Roll Machines, it is possible to achieve a full cylinder at a single pass because the material can be pinched with the lower-roll during pre-bending and bending. AHS model allows for precise pinching of the plate between upper and lower rolls, thus the. STANDART FEATURES Cone rolling device Induction hardened rolls Digital readout for side rolls Fully welded steel (St-52) frame Separate moveable control panel Dual bending speeds All rolls are mounted in spherical roller bearings Hydraulically opened/closed drop end controlled from control panel Activation of cone rolling function and position adjustment via buttons on the control panel Top and bottom rolls (central rolls) driven by hydraulic motors and planetary gear reducers Electro – hydraulic calibration CE, ISO9001 – 2015, TSEK ve TURQUM certifications OPTIONAL FEATURES Variable speed of rotation Material feeding table Oil air cooler Central support Side supports Material ejector Deflection compensating system Interchangeable top roll NC AK300 CNC AK400
