CNC drilling line 3ADM 1200
multi-axisfor profilesfor steel

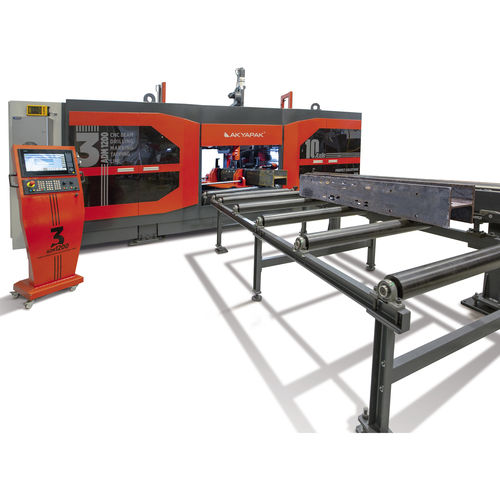

CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 2
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 3
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 4
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 5
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 6
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 7
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 8
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 9
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 10
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 11
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 12
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 13
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 14
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 15
CNC drilling line - 3ADM 1200 - AKYAPAK MAKINA SAN TIC - multi-axis / for profiles / for steel - image - 16
Add to favorites
Compare this product


Characteristics

Type
CNC
Number of axes
multi-axis
Applications
for profiles, for steel
Number of spindles
3-spindle
Drilling diameter

Max.: 40 mm
(1.57 in)

Min.: 10 mm
(0.39 in)

Power

22,000 W

Weight

13,000 kg
(28,660 lb)

Description

AKYAPAK, as a leader of its sector, shows its technology in steel construction drilling lines and moves it from Turkey to the World. AKYAPAK, created AKDRILL brand in this sector, manufactures CNC drilling machine series with servo motor driven in the name of ADM for steel construction masts. AKDRILL ADM Drilling Machines provide high quality solutions in manufacturing of steel construction, bridge construction, shipyards and various fields of construction sector. ADM series have the drilling capacity of H, I, and U profiles or angles with 10-40 mm standart diameters or more. ADM Drilling Lines consist of one, two or three independent spindles. 1 ADM model which has one spindle, has the capacity of drilling the profile from three sides with right angle and by rotating +90/-90 degree. 3ADM model, which has three spindles, has the capacity of drilling the profile from three sides independently, marking and tool changing at the same time. Resetting the equipment to zero and setting to the next drilling position are performed automatically by CNC. ADM Drilling Lines, manufacuring with first class equipments as Mitsubishi and Siemens, become prominent with quality and reliability with Akyapak’s strong after sales support, as well. Through 3 independent servo spindle units on 3 ADM model, the profile can be drilled from 3 sides at the same time. Beams can be drilled without driving them throughout the beams’ length of 500 mm. For instance; if the holes’ diameters are 10 mm and the distances between each holes are 40 mm, the spindle is able to drill 12 holes without moving the beam and that means you may save plenty of time within the operation.
