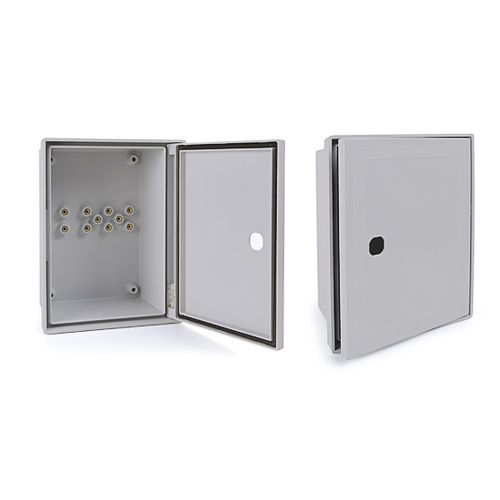

Protection box 06P50
Add to favorites
Compare this product
Description
Protection box for buildings, 1x50A.
Prepared for 3 NH00 bases with high cut-off power + neutral base and assembly of equipment on a DIN rail.
Interior or exterior integrated assembly.
MATERIALS:
Made of polyester reinforced with grey self-extinguishing fibreglass, RAL 7035.
End caps in plastified PVC gray RAL 7035.
APPLICABLE STANDARDS:
EN61439-1
CHARACTERISTICS:
IP45 IK10
Prepared to EDP* lock with cylindrical cannon type RONIS.
Frequency: 50/60Hz
Nominal voltage: 400V, 50Hz
Nominal current: 50A
*EDP-Energias de Portugal
ASSEMBLY INSTRUCTIONS:
For integrated assembly after construction of assembly surfaces.
06P50 This product was developed for the introduction of up to 3x100 A building power supply cables.
