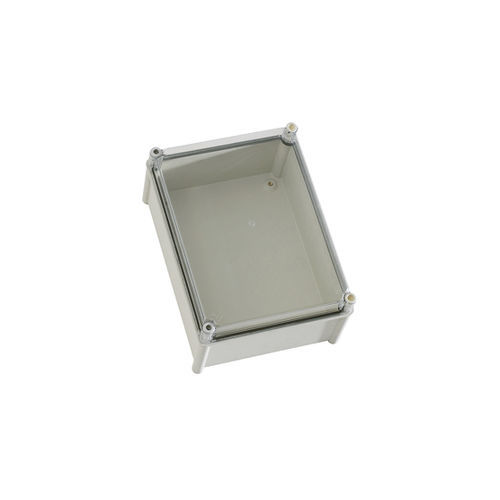

Modular electrical box 06CA seriespolyesterIP65
Add to favorites
Compare this product
Characteristics
- Configuration
- modular
- Material
- polyester
- Protection level
- IP65
Description
Boxes for a variety of different industrial or residential uses.
High mechanical, electrical and humidity resistance level.
Easy to install due to their light weight.
Box made of polyamide 6 with fibreglass, RAL V2 in models CA-1515, CA-215, CA-220, CA-315.
Box made of polyester reinforced with self-extinguishing fibreglass, RAL 7035 in other models.
Transparent or opaque polycarbonate covers, RAL 7035, anti-UV, V2.
Sealing orifice.
EN 62208
IP65 IK10
Modular system
Thermal dissipation capacity: 45ºC to 57ºC
Wide range of measurements and accessories.
Lightweight.
Nominal voltage: 660V
T range supported by the casing: -25ºC to 60ºC
Acceptable load 280kg/m2
Insulation category: Category II
