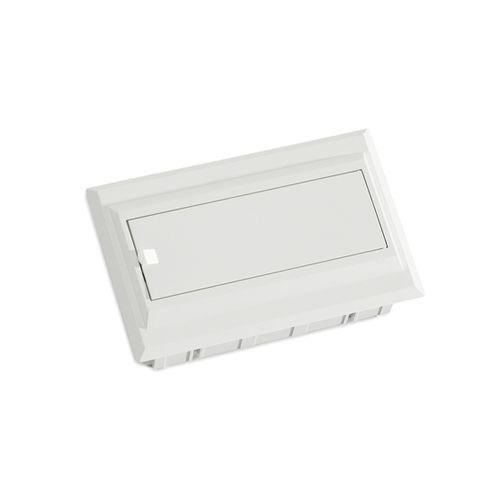

Distribution panel 09QI series

Modular panel for integrated interior installations. Frame, door, lid made of white ABS, RAL 9003. DIN rail made of white polycarbonate, RAL 9003 and anti-UV. Casing made of reinforced polyester with grey self-extinguishing fibreglass, RAL 7035. Brass busbars. 09QI3x15D Frame, door made of white ABS, RAL 9003. DIN rail made of white polycarbonate, RAL 9003 and anti-UV. 09QI2x17D Frame, door, lid made of white ABS, RAL 9003 and anti-UV. Zinc plated DIN rail. EN 62208 IP31 IK05 Thermal dissipation capacity: 12 W Insulation category: Category II Temperature range supported by the housing: -5ºC to +35ºC 09QI3x15D IP41 IK05 Thermal dissipation capacity: 20 W 09QI2x17D IP41 IK05 Thermal dissipation capacity: 17 W Possibility of brown transparent lids. Maximum humidity 50% RH to +40°C
