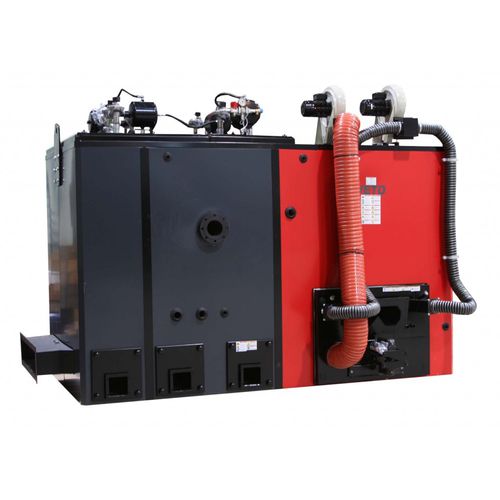

Hot water boiler Veto 700

biomass

Ala-Talkkari’s biomass boiler, Veto 700 stoker boiler is mainly intended for heating, for example, farms, greenhouses, larger premises and district heating plants. The new red-black appearance ensures that this boiler is pleasing to the eye. The boiler is fitted with its own spacious ash base, with several easy-to-use maintenance hatches. The orientation of the boiler can be chosen by the customer (e.g. the burner head on the left, on the right or at the front). The boiler’s convection section is tube-shaped. The tube-shaped structure enables the heat collection area to be large. Due to its user-friendliness and adaptability, the Veto 700 stoker boiler is a secure and domestic choice. Technical information: Length, external dimension: 3430 mm Width, external dimension: 1740 mm Height, external dimension: 2200 mm Width, flue gas conduit: 1000 mm Height, flue gas conduit: 200 mm Flue gas conduit height from the floor (to the middle of the conduit): 180 mm Domestic water coil: – Heating circuit outputs: 1 x DN100 + 2 x 2” Mixing valve: – Electric resistance connector: – Nominal capacity: 700 kW Weight: 6000 kg Water container: 3000 l
