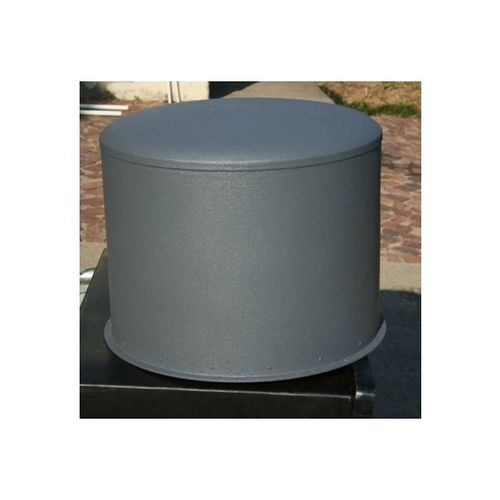

Radio antenna MONO-A0022
omnidirectionalruggedpassive

radio antenna
radio antenna
Add to favorites
Compare this product


Characteristics

Network
radio
Type
omnidirectional
Other characteristics
rugged, passive
Applications
for vehicles
Frequency

Max.: 600 MHz

Min.: 100 MHz

Gain

0 dB

Description

The MONO-A0022 is a wideband high-power omni transmit antenna and is designed for full-coverage high-power applications and wideband monitoring from 100 to 600 MHz. Housed in a rugged radome, the antenna is mounted either on a vehicle roof or an elevated groundplane. The antenna element inside the radome has excellent gain and VSWR characteristics over the full-band. No lossy matching network is used, the antenna structure is designed to work over the full frequency range, giving maximum radiation and allowing high transmitted powers to be used. The antenna can be used for reception at lower frequencies with reasonable gain. This antenna can be customised if required, for different frequency ranges or greater power handling. Dimensions (m) - - 630 mm diameter 500 mm high - Mass (kg) - - 15 - Maximum VSWR - - < 2.5:1 - Polarisation - - Vertical - Power Handling (W) - - 1000 - Size (m) - - 0.63
