Radio antenna DF-A0020

cylindrical

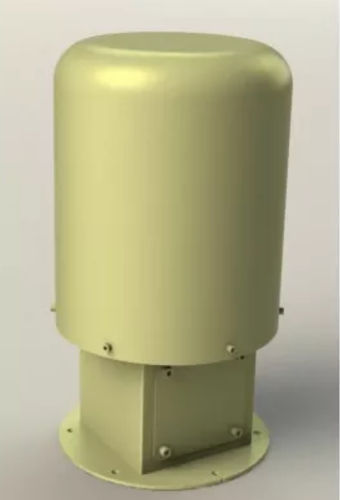

The DF-A0020 direction finding antenna from Alaris Antennas originates from the well-established DF-A0001 wideband DF antenna. This antenna is the highest-frequency set, which works well from 800 to 3000 MHz. It is suitable for quick deployment as well as fixed applications. The 5-element interferometer antenna is located inside a radome with the electrical connections for the five channels being available near the base as depicted or via the centre of the mast as required. These can then be terminated into an ASU or extended for direct connection into a receiver. Dimensions (m) - - 550 mm high300 mm diameter - Mass (kg) - - 10 - Polarisation - - Vertical - Size (m) - - 0.55
