HF antenna DIPL-A0056
dipoleomnidirectionalpassive

HF antenna
HF antenna
Add to favorites
Compare this product


Characteristics

Network
HF
Type
omnidirectional, dipole
Other characteristics
compact, passive
Frequency

Max.: 30 MHz

Min.: 1.5 MHz

Description

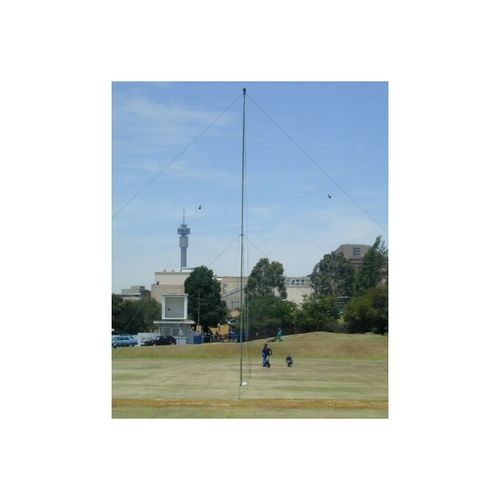

This antenna gives a superior radiation pattern for near vertical incidence sky wave (NVIS) and short distance HF high power transmit and communications. The antenna requires either a 10 m or 12 m fibreglass sectioned mast with guy ropes. This can be supplied as an optional extra. Included with the antenna is a storage drum which allows for the quick and efficient stowage of the antenna with its feed box and distributed loads. Dimensions (m) - - 90 m long10 m high10 m wide - Mass (kg) - - 17 - Maximum VSWR - - < 2.5 - Polarisation - - Linear - Power Handling (W) - - 1000 - Size (m) - - 90
