3-axis CNC milling machine FRH 90
verticalgantryISO 9001

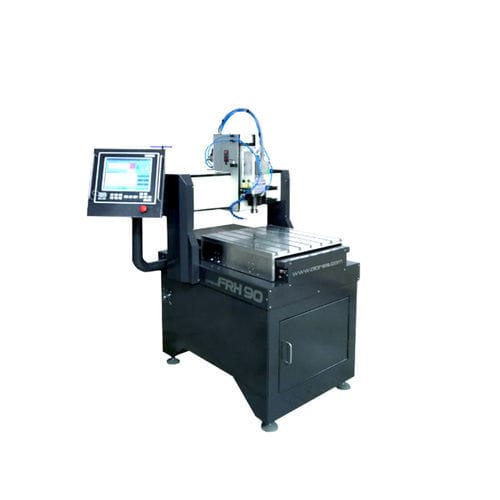

3-axis CNC milling machine - FRH 90 - Alarsis - vertical / gantry / ISO 9001
3-axis CNC milling machine - FRH 90 - Alarsis - vertical / gantry / ISO 9001
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry
Certifications
ISO 9001
Other characteristics
precision, laser
X travel

500 mm
(19.69 in)

Y travel

500 mm
(19.69 in)

Z travel

120 mm
(4.72 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 6,000 rpm
(37,699 rad.min-1)

Power

1.5 ch
(1.5 hp)

Overall length

900 mm
(35.4 in)

Overall width

1,050 mm
(41.3 in)

Description

Small format model for any type of machining, oriented to prototyping and 3D modelling. Very robust and low maintenance, characteristics of all the FRH series. Useful working area of 500 x 500mm and height of 120mm. The ball screw transmission on ALL AXES gives it unrivalled power and precision. Steel frame. Aluminium ribbed table. Electronics with RTA drivers and class 6 robotics wiring. Tex Computer touch screen CNC control system. Linear guides with self-lubricating, sealed, backlash-free recirculating ball bearing slides. Spindle drive on all axes, with preloaded recirculating ball nuts and 30Kg/cm PaP motors. Servos in option. Travelling speed 15 metres/min. Resolution 0,005mm. Chip suction system. Z-axis zero setting stylus. Laser pointer for X,Y axis zero setting verification. Automatic tool change in option. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
