3-axis CNC milling machine FRH 316
verticalfor woodfor composites

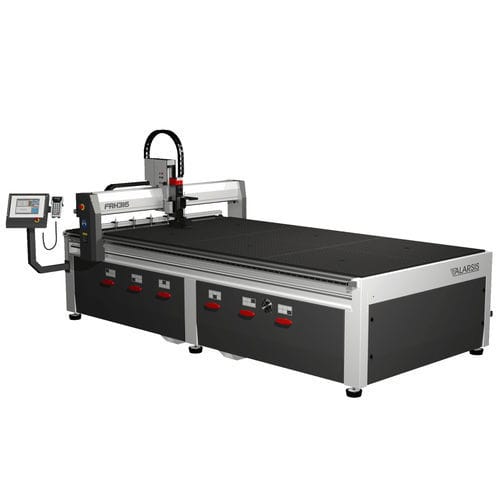

3-axis CNC milling machine - FRH 316 - Alarsis - vertical / for wood / for composites
3-axis CNC milling machine - FRH 316 - Alarsis - vertical / for wood / for composites
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for wood, for composites
Associated functions
cutting
Certifications
ISO 9001
Applications
for panels
Other characteristics
precision, laser
X travel

3,050 mm
(120.08 in)

Y travel

1,600 mm
(62.99 in)

Z travel

120 mm, 200 mm
(4.72 in, 7.87 in)

Rotational speed

24,000 rpm
(150,796 rad.min-1)

Power

3 ch
(3 hp)

Overall length

3,670 mm
(144.5 in)

Overall width

2,010 mm
(79.1 in)

Description

Large format and high production model with multiple functionalities for cutting and machining all types of plastic materials, cardboard, fibres, textiles, composite panels, wood, etc., where both power and precision are required. Very robust and low maintenance, characteristics of the entire FRH series. With ball screw transmission on all axes with our exclusive rotating nut system. Heads configurable according to milling needs or tangential heads for fixed blades, oscillating blades etc. in a useful size of 305x160cm. and height of 120mm. SPECIFICATIONS: Steel frame. Sectored vacuum table with 7 HP pump. CNC control TexComputer with touch screen and remote control. Linear guides with self-lubricating recirculating ball bearing slides, with no backlash. Spindle transmission on all axes, with recirculating ball screw. 30Kg/cm PaP motors. Servos in option. Travelling speed 20 metres/min. Resolution 0,005mm. Chip suction system. Optional tangential heads for cutting and creasing of foams, fibres and cardboard. Optional mark reading camera. Z-axis zero setting stylus. Laser pointer for X, Y axis zero setting verification. ATC, MTC Brushless motor heads for milling jobs with or without tool change. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
