3-axis CNC milling machine FRH 350
verticalgantryISO 9001

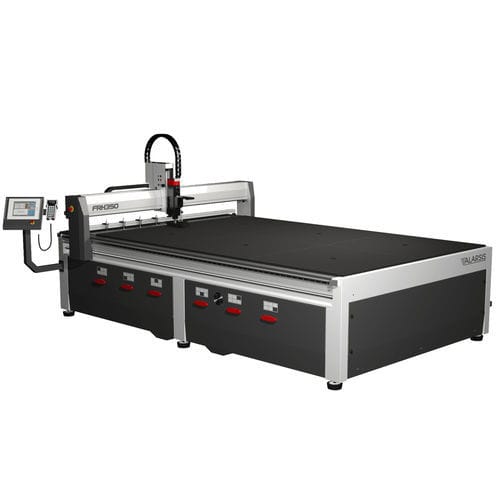

3-axis CNC milling machine - FRH 350 - Alarsis - vertical / gantry / ISO 9001
3-axis CNC milling machine - FRH 350 - Alarsis - vertical / gantry / ISO 9001
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry
Certifications
ISO 9001
Other characteristics
precision, laser
X travel

3,050 mm
(120.08 in)

Y travel

2,020 mm
(79.53 in)

Z travel

120 mm
(4.72 in)

Rotational speed

Min.: 6,000 rpm
(37,699 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

3 ch
(3 hp)

Overall length

3,850 mm
(151.6 in)

Overall width

2,350 mm
(92.5 in)

Description

Production model for machining where both power and precision performance are required. Aimed at the large format graphic arts sector. Very robust and low maintenance, characteristics of all the FRH series. With optional automatic tool changer. Useful working area of 300 x 200 cm and height of 120mm. Ball screw drive on ALL AXES for unrivalled power and precision. Steel frame. Sectored vacuum table with 7CV pump. Electronics with RTA drivers and class 6 robotics wiring. Tex Computer touch screen CNC control system. Linear guides with self-lubricating, sealed and backlash-free recirculating ball bearing slides. Spindle drive on all axes, with preloaded recirculating ball nuts and 30Kg/cm PaP motors. Servos in option. Travelling speed 20 metres/min. Resolution 0,005mm. Chip suction system. Probe for Z-axis zero setting. Laser pointer for X,Y axis zero setting verification. Automatic tool change in option. ATC, MTC Brushless motor heads for milling work with or without tool change. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
