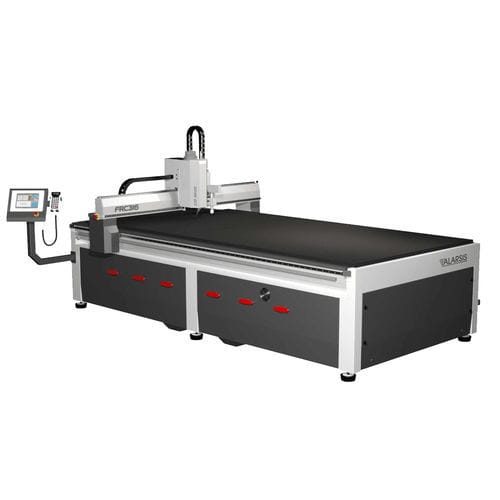

5-axis CNC milling machine FRC 316verticalbridgecutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Associated functions
- cutting
- Certifications
- ISO 9001
- X travel
3,000 mm
(118.11 in)- Y travel
1,600 mm
(62.99 in)
Description
360º tangential head with +-50º pivoting blade.
Tangential head with oscillating blade.
Transmission by helical rack and servomotors.
Vacuum table for panel clamping.
Vacuum pump of 7cv 300m3/h. Integrated in the frame.
Axes speed up to 40 m/min.
Cutting thickness of panels and foams up to 50mm.
Marker for part numbering.
Very easy to use.
DUCT5 OnLine software with duct library.
Parametrizable with nesting for maximum use of material.
PROFESSIONAL SYSTEMS
More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world.
MULTIPLE FUNCTIONALITIES
Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
