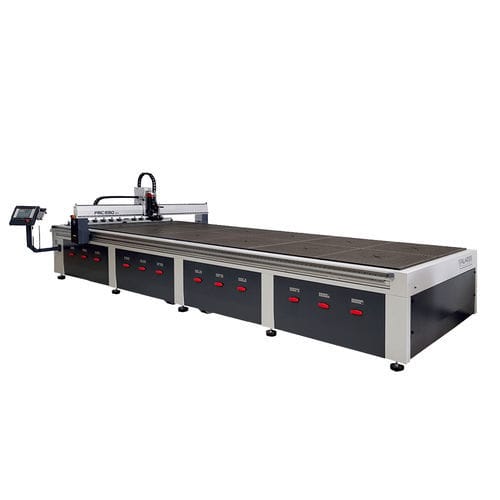

3-axis CNC milling machine FRC 650
verticalISO 9001for panels

3-axis CNC milling machine
3-axis CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Certifications
ISO 9001
Applications
for panels
Other characteristics
precision, laser, for production, multi-spindle
X travel

6,100 mm
(240.16 in)

Y travel

2,040 mm
(80.31 in)

Z travel

120 mm
(4.72 in)

Weight

1,300 kg
(2,866.01 lb)

Overall length

6,900 mm
(271.7 in)

Description

Large format model for production and intensive workload in machining of panels of different materials where both power and precision performance are required. Very robust and low maintenance, features of all FRC series, servo motors and automatic tool changer or two or three heads system in option. Useful working area of 610x204cm and height of 120mm. SPECIFICATIONS: Steel frame. Sectored vacuum table with 7 HP pump. CNC TexComputer touch screen control. Linear guides with self-lubricating recirculating ball bearing slides, watertight and play-free 25mm. Transmission by helical racks. Servomotors 70Kg/cm with high precision gearboxes. Travelling speed 40 metres/min. Resolution 0,01mm. Optional cyclonic chip suction system. Brushless head of 3, 5, 7cv according to versions. Touch probe for Z-axis zero setting. Laser pointer for X, Y axis zero setting verification. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
