3-axis CNC milling machine FH 250
verticalISO 9001for heavy loads

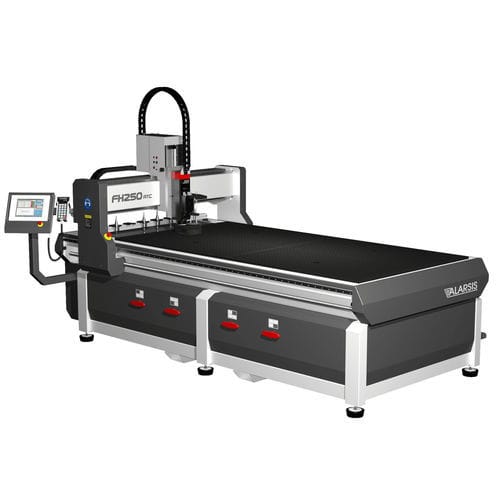

3-axis CNC milling machine - FH 250 - Alarsis - vertical / ISO 9001 / for heavy loads
3-axis CNC milling machine - FH 250 - Alarsis - vertical / ISO 9001 / for heavy loads
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Certifications
ISO 9001
Applications
for heavy loads
Other characteristics
laser
X travel

245 cm
(96.46 in)

Y travel

125 cm
(49.21 in)

Z travel

150 mm
(5.91 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 6,000 rpm
(37,699 rad.min-1)

Power

5 ch
(5 hp)

Overall length

370 cm
(145.7 in)

Overall width

130 cm
(51.2 in)

Description

Production model for machining where both power and precision performance are required with high workloads. Ideal for the carpentry and sign industry, with tubular steel chassis, very robust and low maintenance, characteristics of the entire FH series. Useful working area of 245x125cm and height of 150mm. Provides unrivalled power and precision. Welded tubular steel frame. Vacuum table with 6 sectors and 7CV pump. Electronics with RTA drivers and class 6 robotics wiring. TEXCOMPUTER touch screen controller. Linear guides with self-lubricating, sealed and backlash-free recirculating ball bearing slides. Spindle drives on all axes, with recirculating ball bearing and guideway nuts. Preloaded and SanyoDenky servo motors with 70Kg/cm torque. Travelling speed 20 metres/min. Adjustable resolution 0,001mm. Chip suction system. Probe for Z-axis zero setting. Laser pointer for X,Y axis zero setting verification. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
