3-axis CNC milling machine FH 350
verticalISO 9001for heavy loads

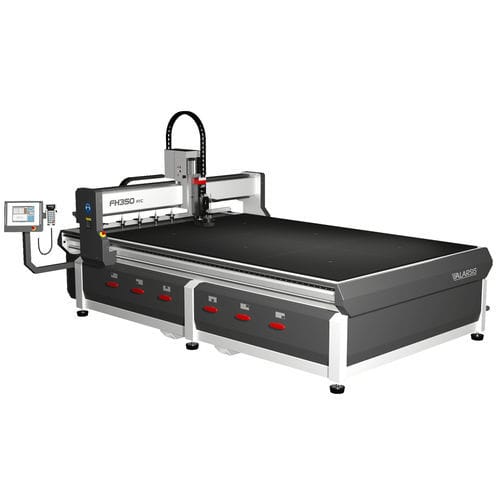

3-axis CNC milling machine - FH 350 - Alarsis - vertical / ISO 9001 / for heavy loads
3-axis CNC milling machine - FH 350 - Alarsis - vertical / ISO 9001 / for heavy loads
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Certifications
ISO 9001
Applications
for heavy loads
Other characteristics
precision, laser
X travel

3,050 mm
(120.08 in)

Y travel

2,020 mm
(79.53 in)

Z travel

150 mm
(5.91 in)

Rotational speed

Min.: 6,000 rpm
(37,699 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

7 ch
(7 hp)

Description

Production model for machining where both power and precision performance are required with high workloads. Ideal for the carpentry and sign industry, with tubular steel chassis, very robust and low maintenance, characteristics of the entire FH series. Useful working area of 305x202cm and height of 150mm. Provides unrivalled power and precision. Welded tubular steel frame. Vacuum table with 6 sectors and 7CV pump. Electronics with RTA drivers and class 6 robotics wiring. TEXCOMPUTER touch screen controller. Linear guides with self-lubricating, sealed and backlash-free recirculating ball bearing slides. Spindle transmission on all axes, with preloaded recirculating ball nuts and 70Kg/cm torque SanyoDenky servo motors. Travelling speed 20 metres/min. Adjustable resolution 0,001mm. Chip suction system. Probe for Z-axis zero setting. Laser pointer for X,Y axis zero setting verification. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
