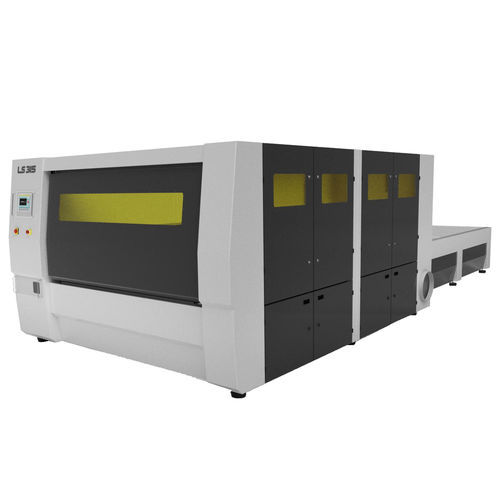

Fiber laser cutting machine LS 315

for aluminumfor stainless steelfor carbon steel

New high production models for cutting metals by fibre laser. Available in two standard sizes and also made to measure, our LS210 and LS315 models can be equipped with fibre laser power ratings between 1000w and 4000w with cutting capacity of carbon steels up to 15mm, stainless steels and aluminium with the advantage of the low maintenance of fibre lasers compared to CO2 lasers. SPECIFICATIONS: TexComputer CNC control with touch screen. Rear loading table. Side chip and small parts removal trays. Linear guides with recirculating ball bearing slides, sealed and backlash free. High speed spindle drive with preloaded ball nuts. 70Kg/cm Lenze servo motors. Automatic self-lubrication on all axes. Resolution 0,001mm. Z head with height control. PRECITEC laser head. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
