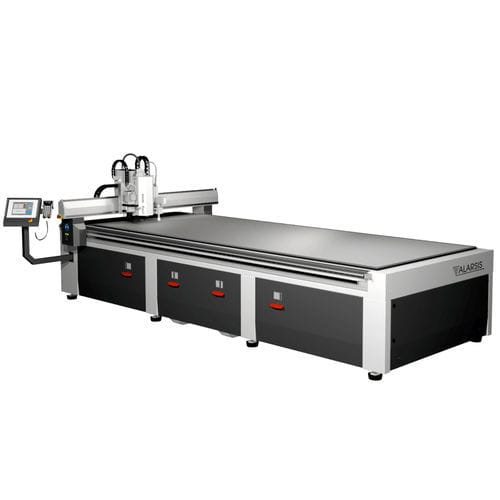

Oscillating blade cutting machine FRC 416

for metalpanelCNC

Cutting and machining of pre-insulated and fibre panels for HVAC ductwork. Cutting of all types of foams and fibres for insulating metal ducts. Cutting and machining of aluminium and other materials by milling. CNC bridge machine with 3 heads. 360º tangential head with pivoting blade +-50º. Tangential head with oscillating blade. Milling head with electro-spindle of 3cv 24.0000rpm. Transmission by helical rack and servomotors. Vacuum table for panel clamping. Vacuum pump 7cv 300m3/h. CNC Texcomputer 5 axis control with touch screen. Cutting thickness of panels and foams up to 80mm. Marker for part numbering. Very easy to use. DUCT5 software with different parameterisable duct libraries with nesting for maximum material utilisation. PROFESSIONAL SYSTEMS More than 2500 machines manufactured are our guarantee. Growing and maintaining all our systems all over the world. MULTIPLE FUNCTIONALITIES Sign making, model making, prototypes, scenography, carpentry and any industrial process where high quality machining is required.
