Up to 5 GS/s digitizer ATS9364

2-channel12-bitanalog

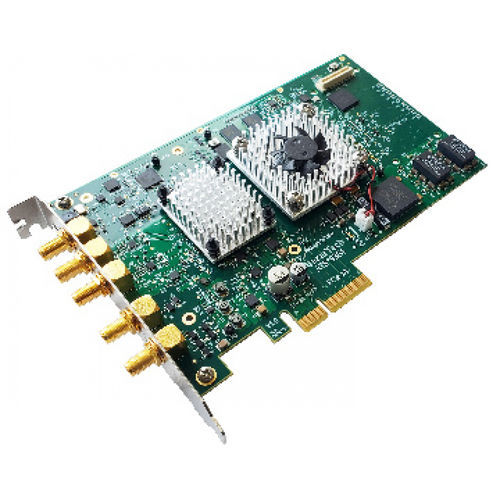

ATS9364 is a low-noise, 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s. With data throughput as fast as 3 GB/s (3000 MB/s), ATS9364 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording. Features: 1 GS/s Real Time Sampling rate 3 GB/s throughput across x4 PCIe Gen3 2 channels sampled at 12 bit resolution 512 Megabytes of on-board Dual-Port Memory per channel Variable frequency external clock capable Fixed ±400 mV Input Range High Signal to Noise Ratio Continuous Streaming Mode Trigger Input & Trigger Output connectors Half-Length PCIe Gen3 x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, MATLAB, Python and LabVIEW Support for Windows and Linux
