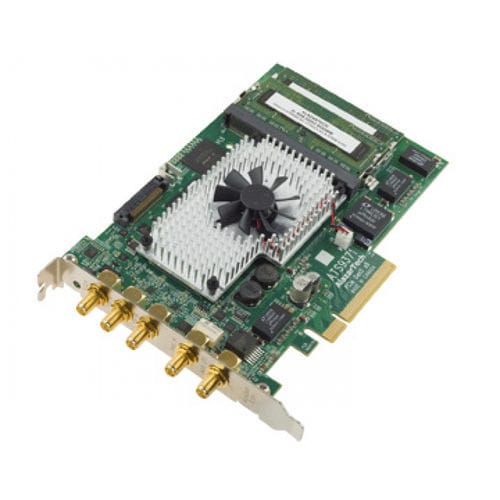

Up to 5 GS/s digitizer ATS9371

2-channel12-bitanalog

ATS9371 is a 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s. With on-FPGA FFT signal processing and data throughput as fast as 6.8 GB/s (6800 MB/s), ATS9371 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording. Features: 1 GS/s Real Time Sampling rate 6.8 GB/s throughput across x8 PCIe Gen3 2 channels sampled at 12 bit resolution 4096 point On-FPGA FFT Engine 8 Gigabytes of on-board Dual-Port Memory Variable frequency external clock capable Fixed ±400 mV Input Range 57.1 dB Signal to Noise Ratio Continuous Streaming Mode Trigger Input & Trigger Output connectors Half-Length PCIe Gen3 x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, MATLAB, Python and LabVIEW Support for Windows and Linux
