Up to 5 GS/s digitizer ATS9373

12-bitanalogRF

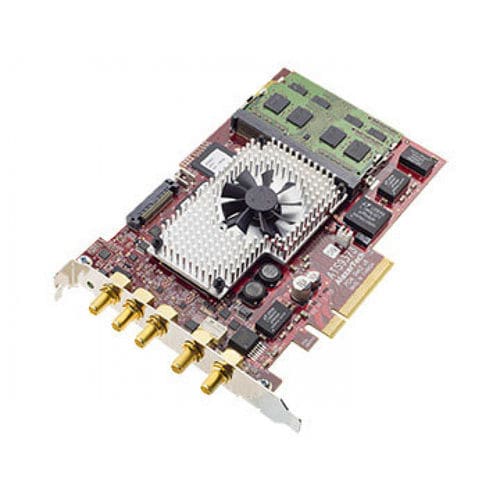

ATS9373 is a 12-bit waveform digitizer board that can sample one analog input at rates up to 4 GS/s or two inputs at 2 GS/s. With on-FPGA FFT signal processing and data throughput as fast as 6.9 GB/s (6900 MB/s), ATS9373 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording. Features: 4 GS/s 12-bit A/D conversion 6.9 GB/s throughput across x8 PCIe Gen3 2 channel operation at 2 GS/s 4096 point On-FPGA FFT Engine 8 Gigabytes of on-board Dual-Port Memory Variable frequency external clock capable Optional 1.7 GHz full power bandwidth Fixed ±400 mV Input Range 57.1 dB Signal to Noise Ratio Continuous Streaming Mode Trigger Input & Trigger Output connectors Half-Length PCIe Gen3 x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
