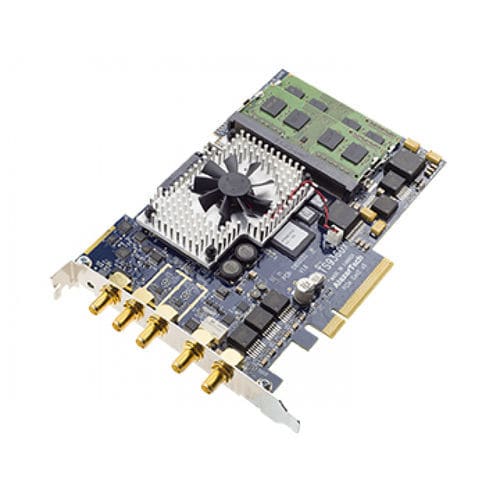

Up to 5 GS/s digitizer ATS9360

2-channel12-bitRF

ATS9360 is a fast, 12-bit waveform digitizer based on the 8-lane PCI Express Gen2 interface. With on-FPGA FFT and boasting data throughput as fast as 3.5 GB/s (3500 MB/s) and sample rate of 1.8 GS/s across 2 simultaneous inputs, ATS9360 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording. Features: 1.8 GS/s Real Time Sampling per channel 3.5 GB/s throughput across x8 PCIe Gen2 2 Channels sampled at 12 bit resolution 4096 point On-FPGA FFT Engine 8 Gigabytes of on-board Dual-Port Memory Variable frequency external clock capable Up to 800 MHz full power bandwidth Fixed ±400 mV Input Range 57.1 dB Signal to Noise Ratio NIST Traceable Calibration Continuous Streaming Mode Trigger Input & Trigger Output connectors Half-Length PCIe Gen2 x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
