Up to 500 MS/s digitizer ATS9353
2-channel12-bitanalog

up to 500 MS/s digitizer
up to 500 MS/s digitizer
Add to favorites
Compare this product


Characteristics

Speed
up to 500 MS/s
Number of channels
2-channel
Options
12-bit, analog, PCIe

Description

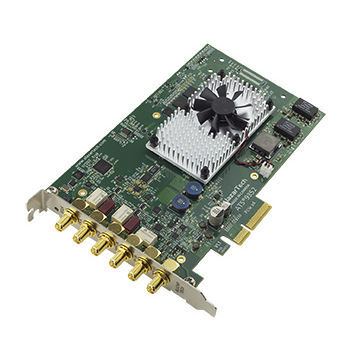

ATS9353 is a low-noise 12-bit waveform digitizer board designed for OEM customers. It can sample two analog inputs at rates up to 500 MS/s. With fixed input range of ±400 mV and signal to noise ratio in excess of 60 dB, ATS9353 is an ideal solution for swept-source OCT applications. Customers who require variable input range should use ATS9352. Features: 500 MS/s Real Time Sampling per channel 1.6 GB/s throughput across PCIe Gen2 x4 bus 2 channels sampled at 12 bit resolution Up to 250 MHz full power bandwidth ±400 mV fixed Input Range 60.26 dB Signal to Noise Ratio at 100 MHz NIST- and CNRC-Traceable Calibration Continuous Streaming Mode 256 Megasamples of Dual-Port Memory per channel Trigger Input & Trigger Output connectors Half-Length PCIe Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
