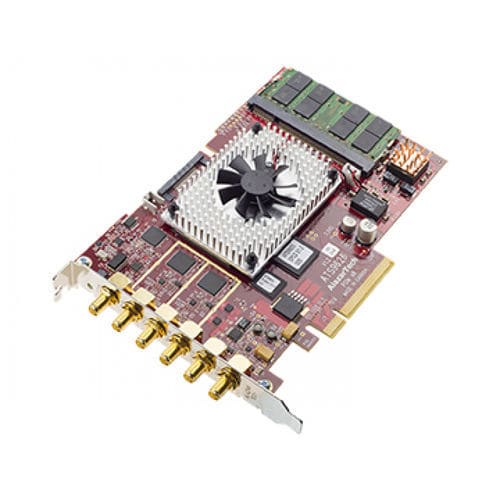

Up to 500 MS/s digitizer ATS9626

2-channel16-bitPCIe

ATS9626 is a 250 MS/s 16-bit PCI Express waveform digitizer. With fixed dc-coupled input range of ±1.25 V and signal to noise ratio in excess of 72 dB, ATS9625 is an ideal solution for applications that require high dynamic range with dc coupling. 250 MS/s 16-bit A/D Sampling per channel DC-coupled input amplifier 1.6 GB/s throughput across PCIe Gen1 x8 bus 2 Channels sampled at 16 bit resolution External clock from 250 MHz to 50 MHz DC ~ 120 MHz full power bandwidth ±1.25 V fixed input range 69.32 dB Signal to Noise Ratio NIST Traceable Calibration Continuous Streaming Mode 2 Gigasamples of on-board Dual-Port Memory Trigger Input & Auxiliary I/O connectors Half-Length PCIe x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
