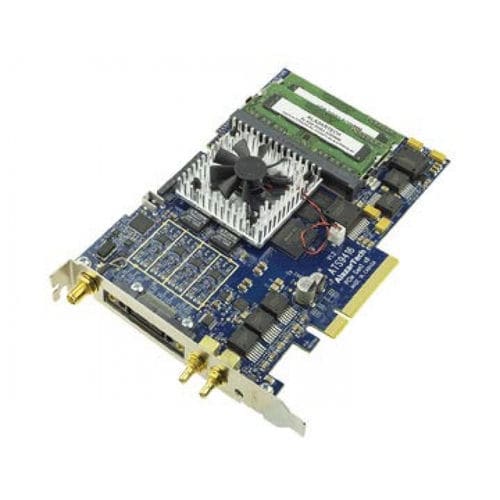

Up to 150 MS/s digitizer ATS9416

16-channel14-bitPCIe

ATS9416 is a 16-channel, 14-bit, 100 MS/s waveform digitizer based on the 8-lane PCI Express Gen2 bus. Boasting data throughput as fast as 3.5 GB/s, ATS9416 is an ideal solution for any application that requires high channel count. 100 MS/s Real Time Sampling per channel 16 channels sampled simultaneously 14 bit A/D resolution 3.5 GB/s throughput across PCIe Gen2 x8 bus External clock from 100 MHz to 5 MHz Up to 65 MHz full power bandwidth Wideband Input option for up to 100 MHz bandwidth ±1 V or ±500 mV Input Range 65 dB Signal to Noise Ratio NIST Traceable Calibration Continuous Streaming Mode 8 Gigabytes of on-board Dual-Port Memory Trigger Input & Auxiliary I/O connectors Half-Length PCIe x8 Card AlazarDSO Software allows quick start-up SDK for C++/C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
