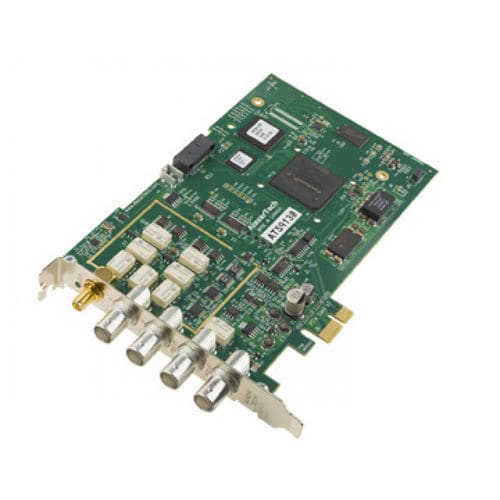

Up to 150 MS/s digitizer ATS9130

2-channel12-bitPCIe

ATS9130 is a 2-channel, 12-bit, 50 MS/s waveform digitizer capable of storing up to 8 Million samples per channel of acquired data in its on-board memory or streaming acquired data to motherboard memory. ATS9130 is a single-lane PCI Express (PCIe x1) Gen 1 card, which supports up to 200 MB/s bus throughput. ATS9130 is an ideal solution for many applications. Features: 50 MS/s Real Time Sampling per channel 2 channels sampled simultaneously 12 bit A/D resolution Up to 8 Million samples of on-board acquisition memory per channel Continuous Streaming Mode External clock from 50 MHz to 1 MHz Up to 25 MHz full power bandwidth ±40 mV to ±20 V Input Range 60 dB Signal to Noise Ratio NIST- or CNRC-Traceable Calibration Trigger Input & Auxiliary I/O connectors Half-Length PCIe x1 Card AlazarDSO Software allows quick start-up SDK for C++/C#, Python, MATLAB, and LabVIEW Support for Windows & Linux
