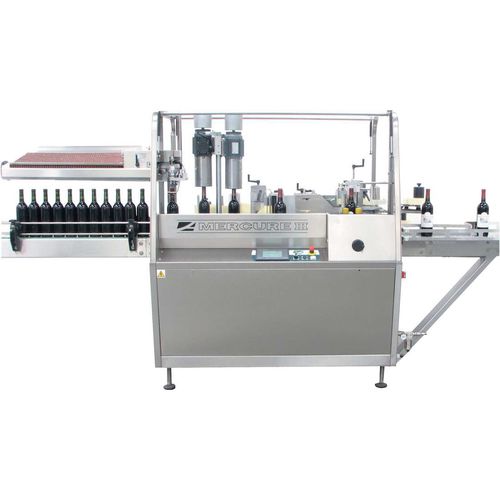

Monobloc capping sealing and labeling machine MERCURE III

automaticfor bottlesfor the wine industry

The Mercure III labelling machine is a monobloc for capping, crimping, and labelling. The capping / crimping is in rotary mode with two heads. Its touch screen associated with its numerous electrical settings, allows rapid format changes, and simplifies the configuration of the dispensing of capsules and the crimping height. The crimping is either rolled or heat shrinkable. The application of the label is automatic after its parameters are set. Cadence: • Up to 3,200 Bottles/hour Dimensions of the machine: • Length: 4,020 mm • Width: 1,511 mm • Height: 2,702 mm Possible options: • 2nd labelling station • 3rd station (2 tilts) • 4th labelling station (1 tilt) • Stations tilting for conical products • Cap dispenser • Heat shrinkable capping • Bottles orientation: bottom notch or (and) optics or (and) moulding joint • Automatic stopping of the application at the end of the label roll • Printing system integration
