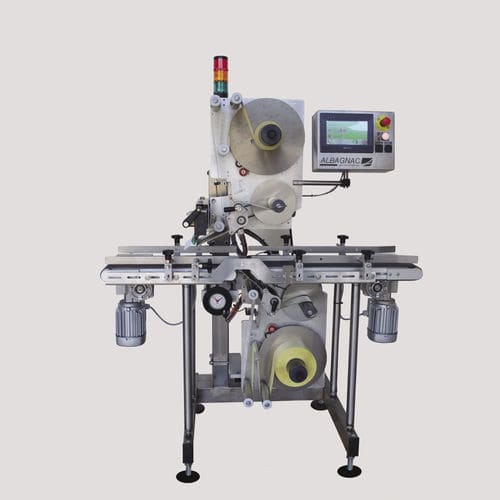

Automatic labelling machine EDD

topfor the food industryfor the cosmetics industry

This machine allows to place a label on top of the product and a label on the bottom of the product at a rate of up to 70 strokes per minute. The choice of the option above/below is available. The lower labelling station can be easily pulled out to change the reel. The control (HMI) makes it possible to memorize the labelling parameters specific to the product treated (speed, position of the label, etc.). In addition, marking by direct printing on the label for inserting any regulatory information with high variability, (Lot number, B.B., etc.) or any promotional information is available. Cadence: up to 3,600 products/hour Dimensions of the machine: Without options: Length: 1,200 mm - Depth: 900 mm - Height: 2,000 mm With options: Length: 1,300 mm - Depth: 900 mm - Height: 2,000 mm Possible options: Pre reel-end sensor Marking/printing on label (Lot number, B.B., etc.) Height and transverse electric setting of the top station Label reel core interchangeability Extract pushed Label stop by: - Optical detection cell - Ultrasonic cell for transparent label Product supported by side straps
